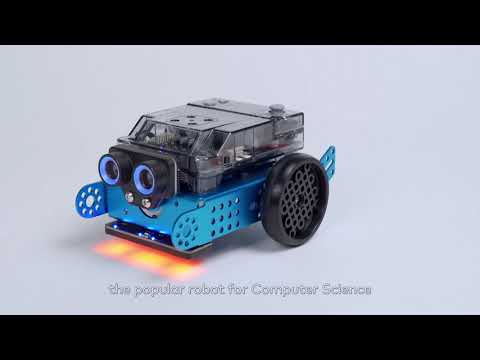

mBot2 is a next-generation STEM educational robot designed with extended capabilities, starting as an entry-level solution in lower secondary education and going all the way to upper secondary and beyond.
mBot2 is powered by CyberPi, an educational microcontroller enhanced with network capabilities, built-in sensors and much more. mBot2 is designed for students to carry out interactive and smart lessons that are engaging, fun and reflecting real-world applications with cutting-edge technologies, including robotics, AI, IoT and Data Science. With mBlock’s enhanced coding learning experience, mBot2 allows students and educators to begin with the block-based coding approach, and seamlessly transition into object-oriented coding with Python, all in the same environment.

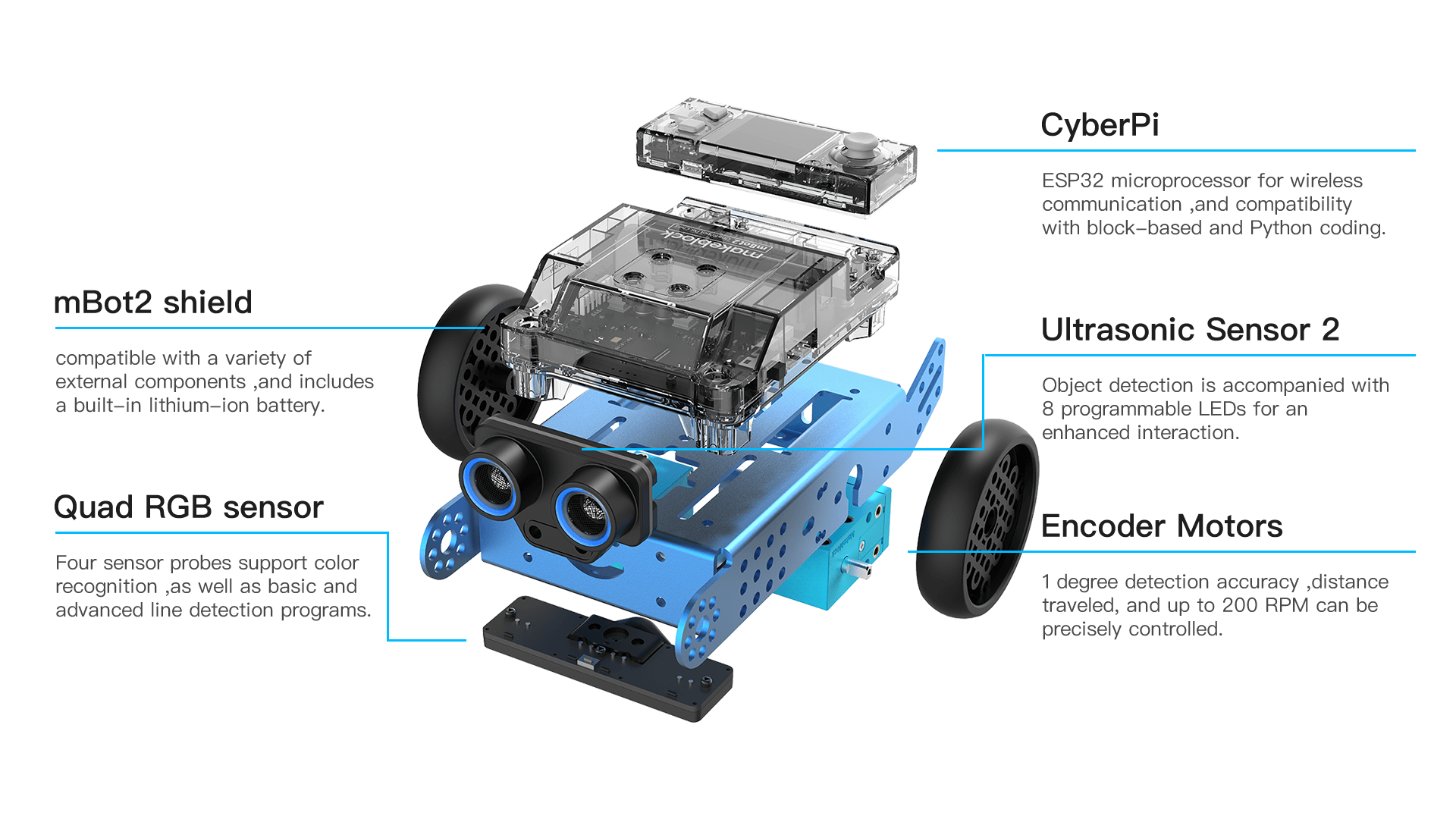

Powered by CyberPi : CyberPi is a powerful and versatile microcontroller for education. Its integrated sensors, full-color display and Wi-Fi communication capabilities allow a wide range of applications on curriculum topics for Computer Science, Robotics, Data Science and Artificial Intelligence, in connection with other areas of the curriculum such as Math, Physics, etc.
Precision Control : The encoder motors in mBot2 can be precisely controlled by their rotation, speed and position, making possible the integration of principles in Math, Physics and Engineering.
Enhanced: mBot2 comes with the next-generation of the ultrasonic sensor, which includes ambient illumination, and the Quad RGB sensor, which uses 4 color sensors simultaneously to detect colors and follow lines. This gives them more accurate performance and consistency. mBot2 can be further expanded with the Makeblock Education’s wide variety of structural parts and mBuild smart electronic modules.
Comparison of mBot and mBot2:
| Specification | mBot 1.1 | mBot2 |
| Control board | mCore | CyberPi |
| Processor | ATmage328 / P | ESP32-WROVER-B |
| SPI Flash memory |
/ |
8MB |
| Store multiple programs simultaneously | / | 8 |
| Support multi threading | / | yes |
| Wireless communication | Either Bluetooth or 2.4G (depends on the version) IR |
Bluetooth, Wi-Fi and Wi-Fi LAN |
| Inputs and onboard sensors | Button Reset button Light sensor |
5-way joystick Button x2 Reset button Light sensor Microphone Gyroscope-accelerometer |
| Outputs | Buzzer RGB LED x2 |
1.44″ full color display Speaker RGB LED x5 |
| Expandable electronic modules | RJ25 ports x4, one component per port | mBuild port x1, connect 10+ components in series |
| Additional interfaces |
/ |
2-pin interface x2 3-pin interface x4 |
